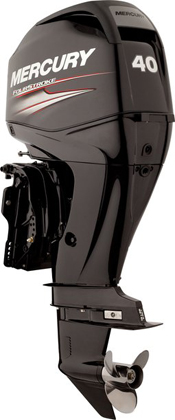

FourStroke 40 hp


    HP / kW
    • 40 / 30
    Engine type
    • Inline 3
    Displacement (CID/CC)
    • 45.6 / 747
    Full throttle RPM
    • 5500-6000
    Fuel induction system
    • 2 valves per cylinder, single overhead cam (SOHC)
    Alternator amp / Watt
    • 18 amp / 226 watt
    Recommended fuel
    • 87% octane / up to 10% ethanol
    Recommended oil
    • Mercury FourStroke 25W40 Marine Oil
    Engine protection operator warning system
    • Low oil pressure
    • Over-rev
    • Overheat
    Compatible with SmartCraft digital technology
    • Yes
    Starting
    • Electric (turn-key)
    Steering
    • Big Tiller Compatible
    • Remote
    • Tiller Kit
    Shaft length
    • 15" / 381 mm
    • 20" / 508 mm
    Gearcase ratio
    • 2.00:1
    Dry weight *Lightest model available
    • 216 lbs / 98 kg
    CARB star rating
    • 3
    Bore and stroke
    • 2.56 x 2.95" / 65 x 75 mm
    Ignition
    • ECM 70
    Fuel system
    • Electronic Fuel Injection (EFI)
    Cooling system
    • Water-cooled with thermostat
    Gear shift
    • F-N-R
    Gearcase options
    • Standard
    Trim system
    • Gas assist
    • Power Tilt
    • Power Trim
    Exhaust system
    • Through prop
    Shallow water trim range (degrees)
    • 20
    Remote fuel tank (optional)
    • Yes
    Color
    • Phantom Black
